Product Description

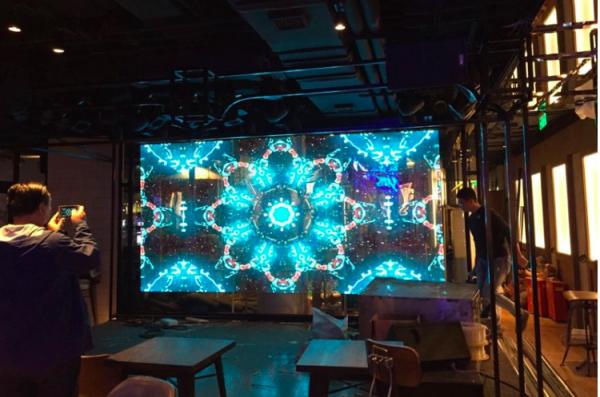

Shopping mall Led mesh advertising screen display EXCEL LED
Ensure the overall appearance of the building
The transparent LED display is usually installed behind the glass
curtain wall and installed indoors. It will not damage the original
building curtain wall structure and ensure the original appearance
of the building is neat and tidy. Conventional LED displays are
generally installed directly outside the building curtain wall,
which not only affects the architectural aesthetics, but also
destroys the overall consistency of the building’s overall
appearance, and it has certain security risks.
Does not affect the normal work and rest in the room
transparent LED display adopts original side-emitting display
technology with high transparency and no light leakage. When the
user displays the advertisement information to the outdoors, the
indoor viewing is transparent, and there is no glare interference,
so the normal work and rest in the room are not affected.
Reduce light pollution in cities
The conventional outdoor LED display has high brightness, and the
general brightness is above 6000 cd, which is particularly dazzling
at night. High brightness not only pollutes the environment but
also impairs the aesthetics of the entire night scape design. The
brightness of the transparent LED display can be adjusted,
highlighted during the day, and the light at night is soft, which
reduces the light pollution to the city and does not affect
people’s normal travel.
Green energy saving
Conventional LED displays consume a lot of power and generate huge
amounts of electricity every year. The transparent LED display has
a transparent display effect when playing advertisements. The part
without the picture does not emit heat, the power consumption is
low, and the conventional LED display energy saving is about 30%,
and the green energy saving meets the development concept of the
green city.
Maintenance management is more convenient and safe
The maintenance of the transparent LED display is generally carried
out indoors, and the maintenance is relatively safe and is not
affected by outdoor instability. transparent LED display adopts
plug-in light bar design, supports front and rear maintenance modes
of the screen body, and only needs to replace a single light bar,
which is easy to operate, low maintenance cost and short time.
Model: C7
| Pixel pitch | 7.82mm | Pixel density per sqm | 16384dots |
| Cabinet size | 1000×1000mm | Brightness | 1,200 cd/m2 |
| Power consumption(Max/Avg) | 300/100w/sq.m | IP level | IP40 / IP20 |
| Net weight | 15kg (Alu.) | Operating temperature | -20℃~+45℃ |
| Refresh rate | ≥1920Hz | View angle (H/V) | 140°/140° |
【Advantages】
Ultralight Design: ultra-light cabinets, thickness 80mm, only 12-15kg
High-transparent: over 85％ of the perspective effects make the glass retain the
function of lighting perspective
Fast Installation: this product is directly attached to the glass curtain wall
without changing any building structure
Easy Maintenance: indoor maintenance, fast and safe, saving manpower and material
resources
Production Ability
Machine Parts
① International and reliable SMT machines, ensuring the production
accuracy.
② Automatic production also improves the manufacture efficiency.
During and after production, there are several tests.
Aging test:
We have 24 hours all white aging test for modules, and 72 hours
full color test for a whole screen. With the two tests, we can
minimize all possible problems, and deliver you goods with best
condition.
Our Services
Pre-sales service
• Salers and engineers assisting you online
• 7 days 24 hours service
• Onsite discussion when needed
After-sales service
• 3 local branches in Africa
• English - speaking engineers
• Scheduled on-site checking
Packaging & Delivery
Packaging: Plywood box + pallet
Plywood case is standard package for export.
C7 cabinet size: 1000 x 1000mm
Standard Package info: 8 panels in 1 box
Plywood case info:
110 x 70 x 80cm, 100kgs (for reference)
Delivery :
Screen < 200sqm:
Production time is 20 working days.
If screen bigger, pls ask us for exact time.
Shipping could be arranged by us or by buyer
Shipping Way
① You can directly contact companies which provide shipping service
in your country.
② We can arrange shipping for you with following methods.
About Us
Our business has been expanding rapidly during these years,
expecially in Africa.
Now we are willing to look for more local partners.
If you have LED screen experience, and you are interested in it,
feel free to talk.
Certifications
